Monorail Electric Chain Hoist 500 kg

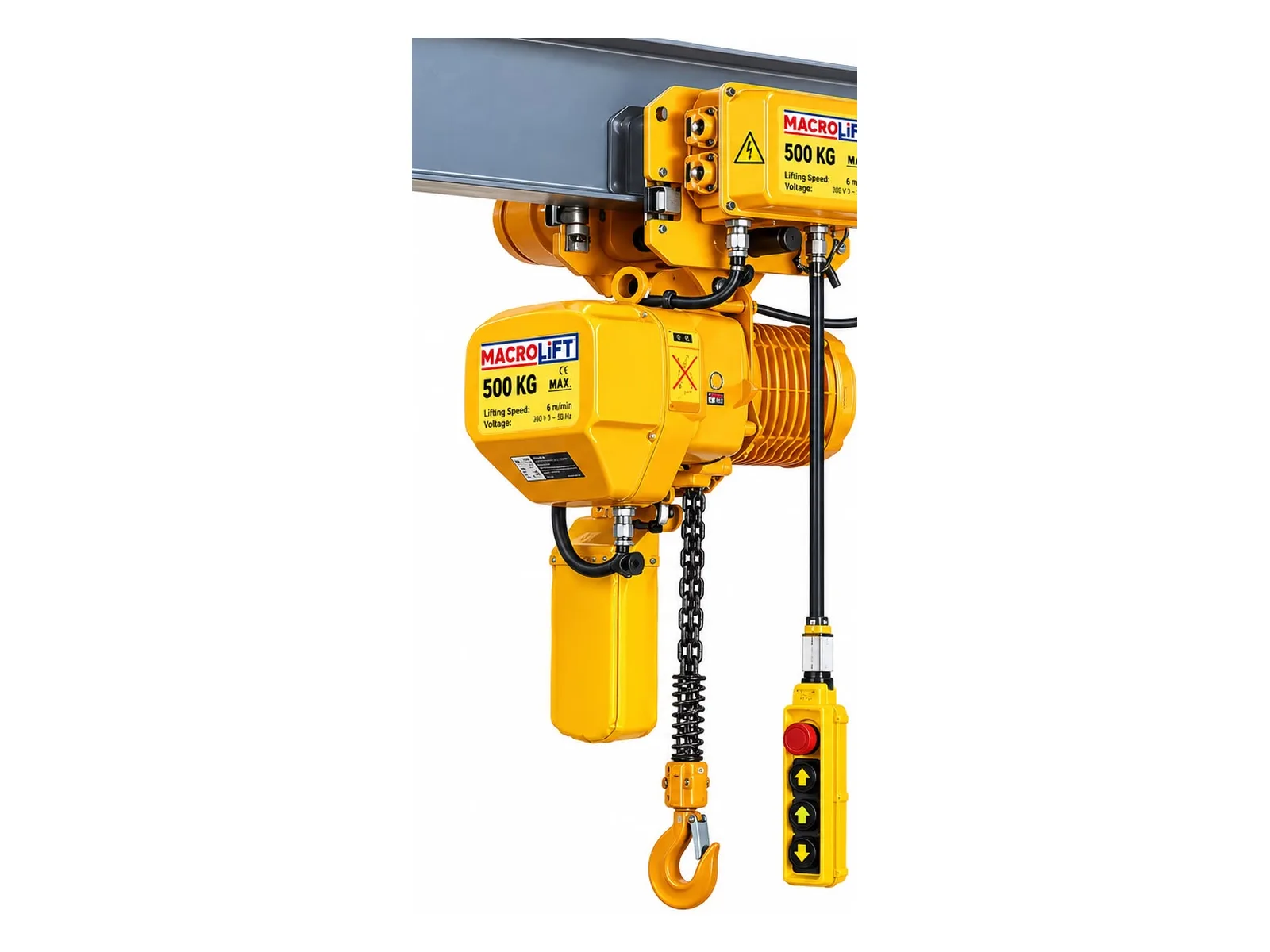

A 500 kg electric monorail chain hoist with 6 m lifting height. Its motorised trolley runs along an I-beam, and lifting, lowering and travel are all controlled from the pendant. Heavy-duty rated with IP54 protection.
- Lifting capacity
- 500 kg
- Lifting height
- 6 m
- Lifting speed
- 6.8 m/min

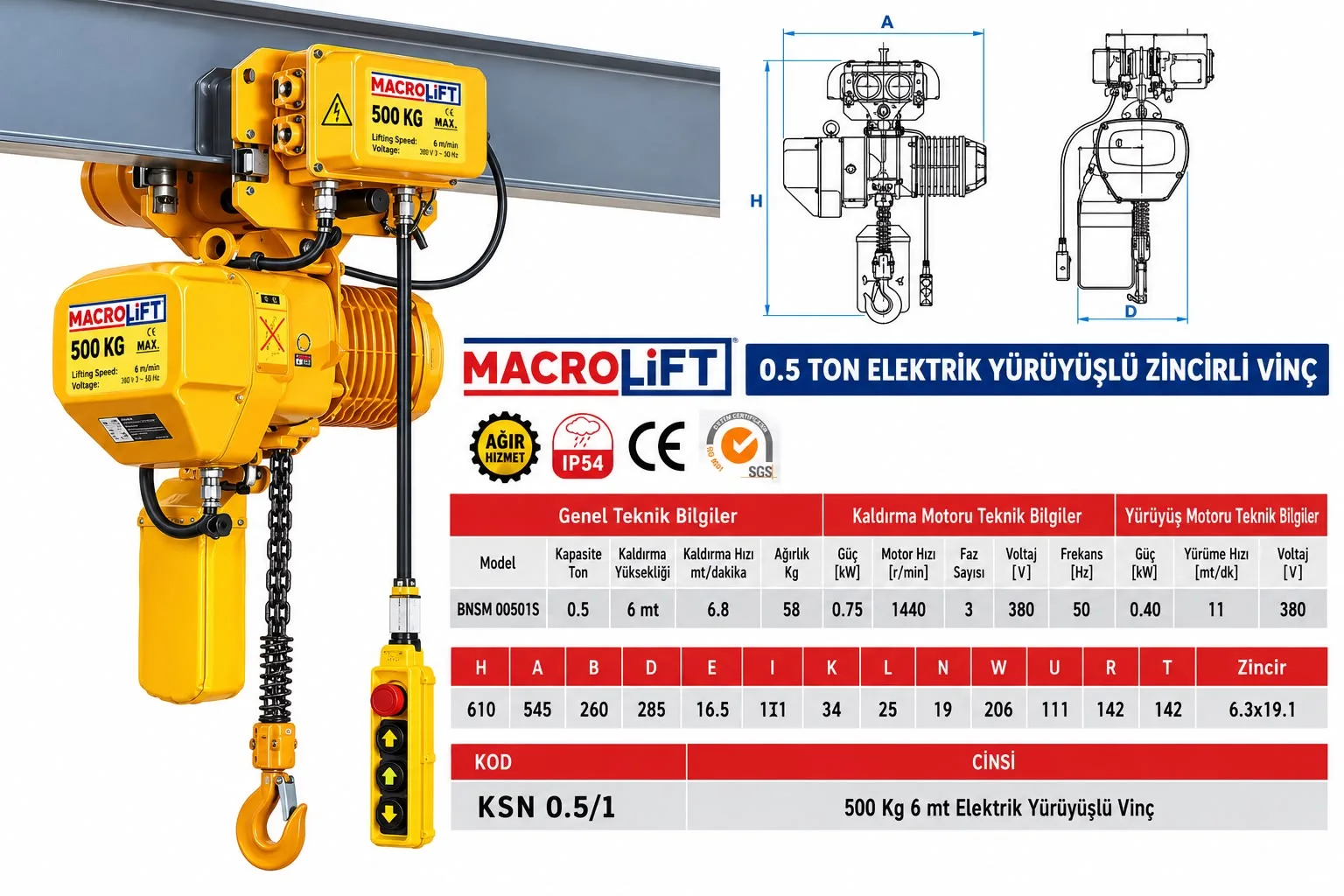

Technical specifications
Zoom
Tap the image to open it full screen and zoom in.
- Delivery from stock
- On-site installation
- Service and spare parts
| Lifting capacity | 500 kg |
|---|---|
| Lifting height | 6 m |
| Lifting speed | 6.8 m/min |
| Hoist motor | 0.75 kW, 1440 rpm |
| Travel motor | 0.40 kW |
| Travel speed | 11 m/min |
| Power supply | 380 V, 3-phase, 50 Hz |
| Load chain | 6.3 x 19.1 mm |
| Protection | IP54 |
| Weight | 58 kg |
| Dimensions (A x D x H) | 545 x 285 x 610 mm |
| Model | BNSM 00501S |
| Product code | KSN 0.5/1 |
Product description
Where it is used
It is used in workshops, production lines and warehouses where loads of up to half a tonne move along a fixed line: lifting parts onto workbenches, moving work between assembly stations or loading in front of racks. The hoist runs on an I-beam hung from the ceiling or a steel structure, driven by its motorised trolley, so there is no need to push the load by hand.
Equipment
- 0.75 kW hoist motor, 6.8 m/min lifting speed
- 0.40 kW travel motor, 11 m/min travel speed
- 380 V, 3-phase, 50 Hz power supply
- 6.3 x 19.1 mm load chain with chain bag
- Hook with safety latch
- Pendant with emergency stop
- IP54 protection, CE marked
Dimensions
The hoist is 610 mm high (H), 545 mm wide (A) and 285 mm deep (D), and weighs 58 kg. All beam and hook dimensions are shown on the specification drawing. For a different lifting height or capacity, message us on WhatsApp and we will quote accordingly.
Three details are enough for a quote
The load, the lifting height and the beam length. Send them on WhatsApp or give us a call and we'll come back with a model and a price.
