Monorail Wire Rope Hoist 1 t, 8 m

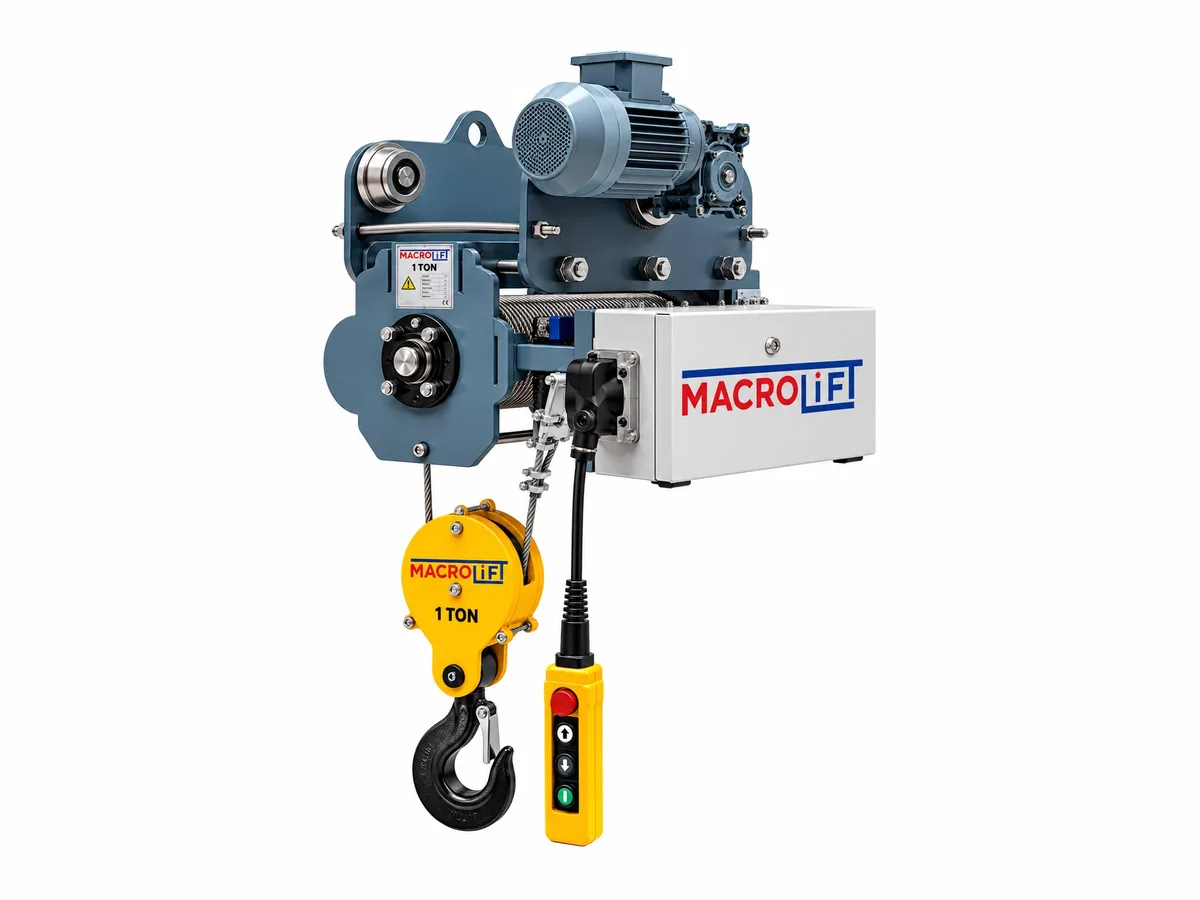

A 1 t monorail wire rope hoist with 8 m lifting height. Its electric trolley runs along an I-beam, and the pendant gives you four movements: up, down, left and right.
- Lifting capacity
- 1,000 kg
- Lifting height
- 8 m
- Lifting speed
- 4.7 m/min
Technical specifications
Zoom
Tap the image to open it full screen and zoom in.
- Delivery from stock
- On-site installation
- Service and spare parts
| Lifting capacity | 1,000 kg |
|---|---|
| Lifting height | 8 m |
| Lifting speed | 4.7 m/min |
| Hoist motor | 1.1 kW, with brake (İMAK) |
| Travel motor | 0.37 kW, without brake (İMAK) |
| Travel speed | 0-20 m/min |
| Wire rope | 8 mm Nuflex 6x36, 17 m |
| Reeving | 2/1 |
| Hook | 360° swivel, DIN 1540 NR 0.5 |
| Power supply | 380 V |
| Brake voltage | 220 V AC |
| I-beam flange width | 80-250 mm |
| Weight | 145 kg |
| Dimensions | 705 x 670 x 570 mm |
Product description
Where it is used

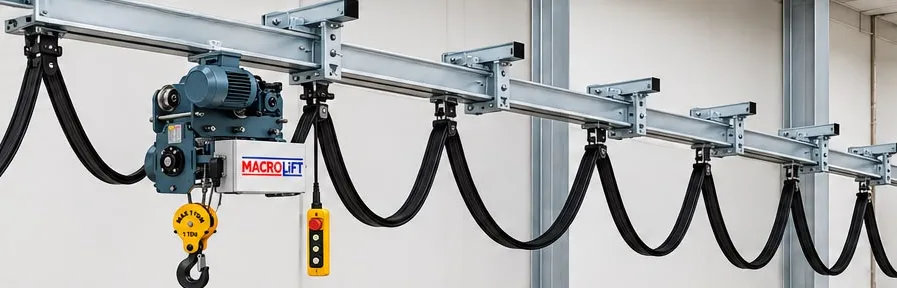

The hoist runs on an I-beam hung from the ceiling or a steel structure. It is used for lifting heavy parts onto machines, moving work between stations on a production line, loading in warehouses and lifting motors or moulds in maintenance workshops. It fits I-beams with a flange width between 80 and 250 mm.
Equipment
- 1.1 kW İMAK hoist motor with brake, 4.7 m/min lifting speed
- 0.37 kW İMAK travel motor, 0-20 m/min travel speed
- 8 mm Nuflex 6x36 steel wire rope (17 m), 2/1 reeving
- Hook that swivels 360 degrees, 1 t hook block
- Pendant with up, down, left and right buttons and an emergency stop
Dimensions and installation

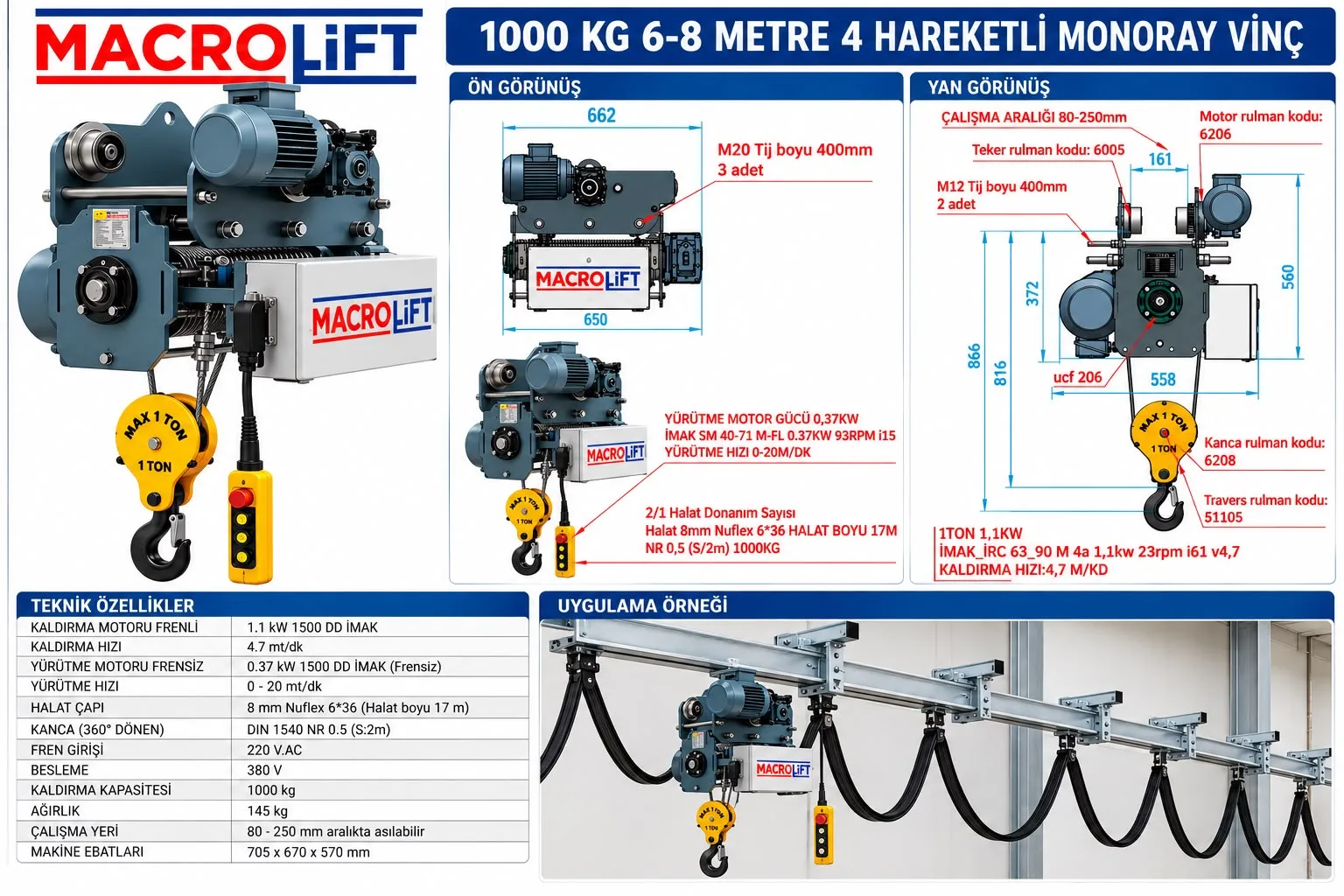

The hoist measures 705 x 670 x 570 mm and weighs 145 kg. Front and side view dimensions, bearing codes and mounting rods are shown on the specification drawing. For a different lifting height or capacity, message us on WhatsApp and we will quote accordingly.
Three details are enough for a quote
The load, the lifting height and the beam length. Send them on WhatsApp or give us a call and we'll come back with a model and a price.
